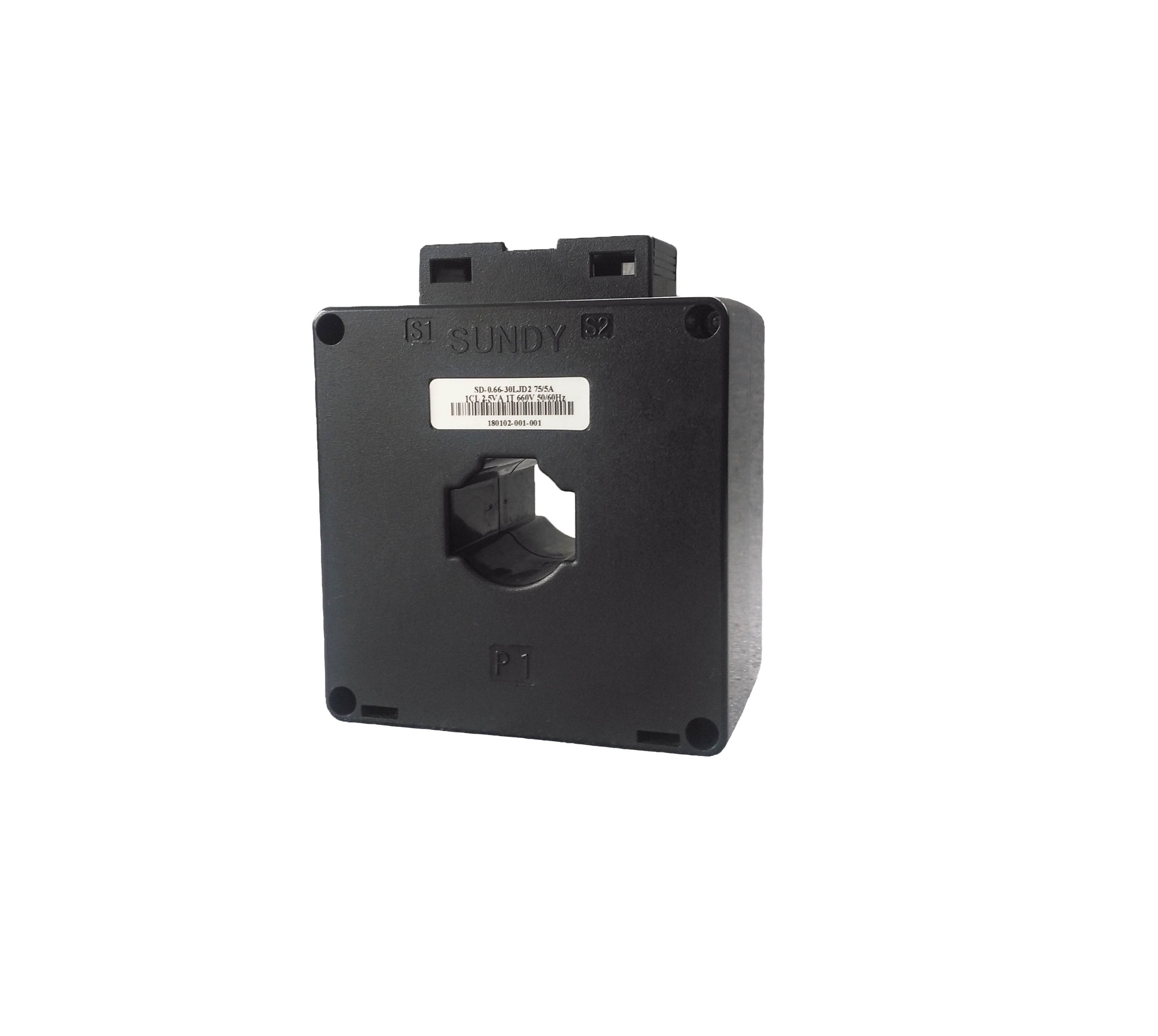

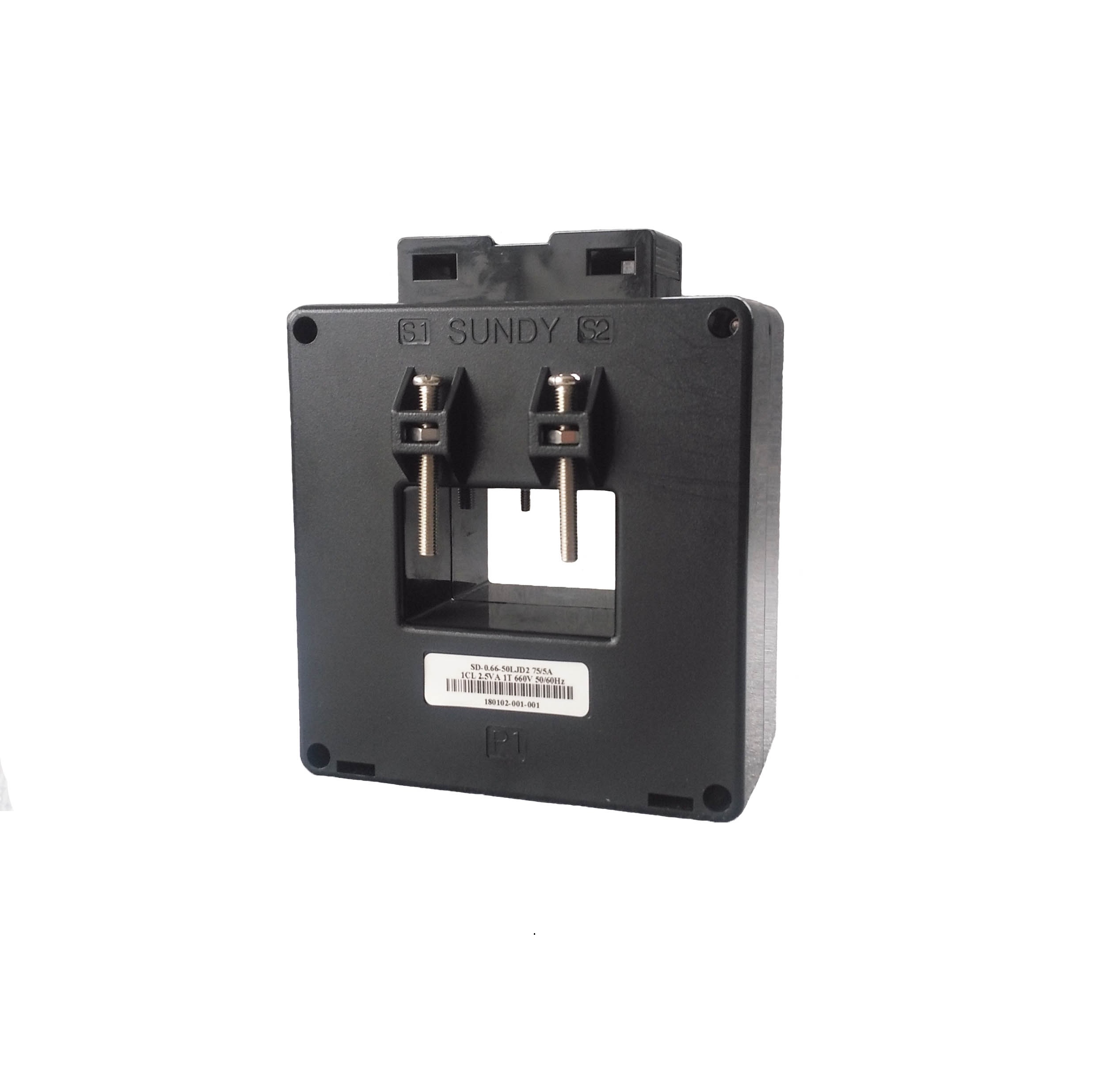

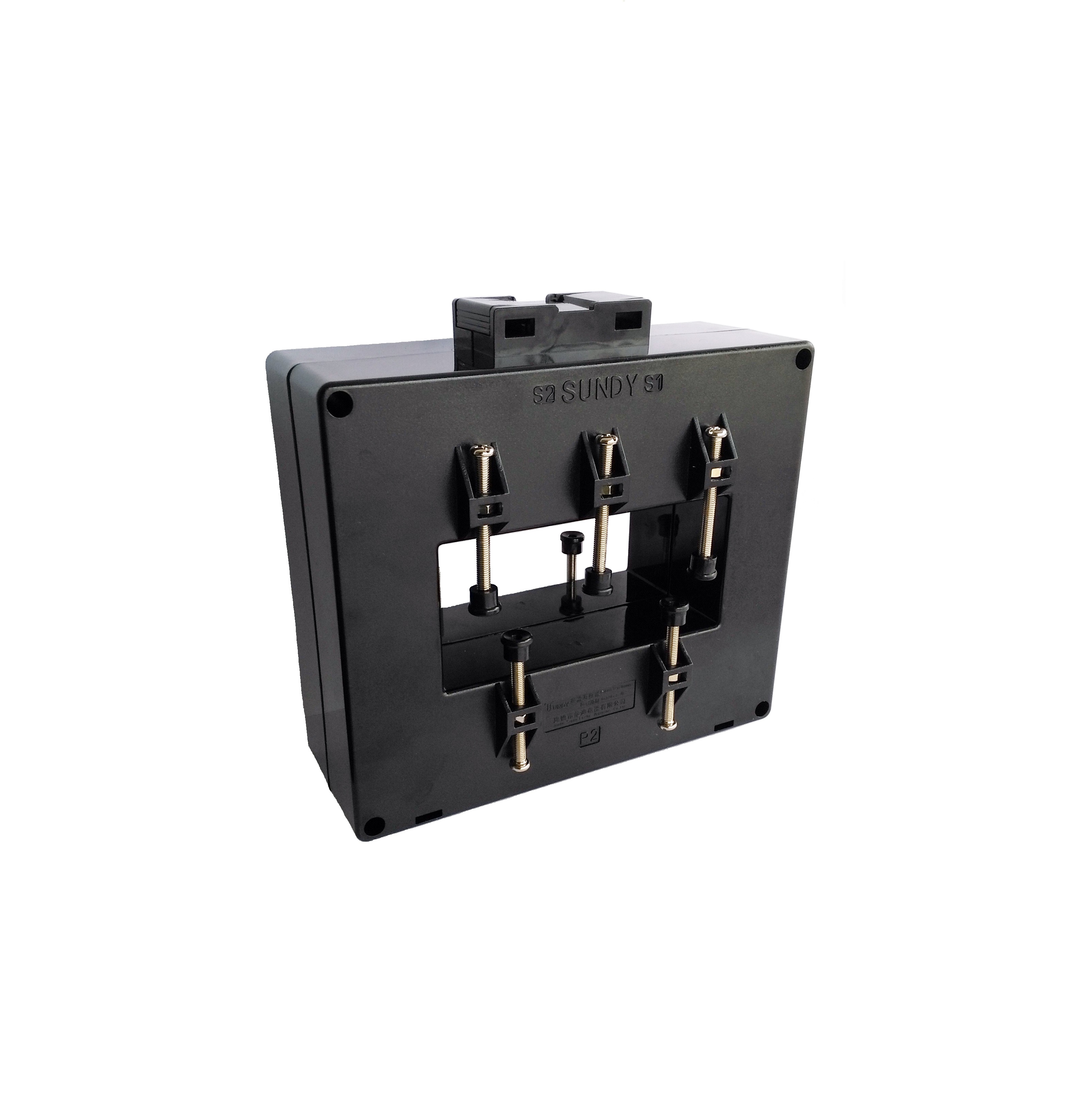

SD-LJD2 type Zero Sequence Current Transformers
Characteristics：
The combination of SD-0.66-□□LJD2 residual current transformer and SD-ZLD2 type current protection relay or related protection apparatus forms the ground fault protection system, it applies to resistance ground system, low voltage power distribution system that up to 0.66kV, also can be used on other types of ground system.
Dwonload
