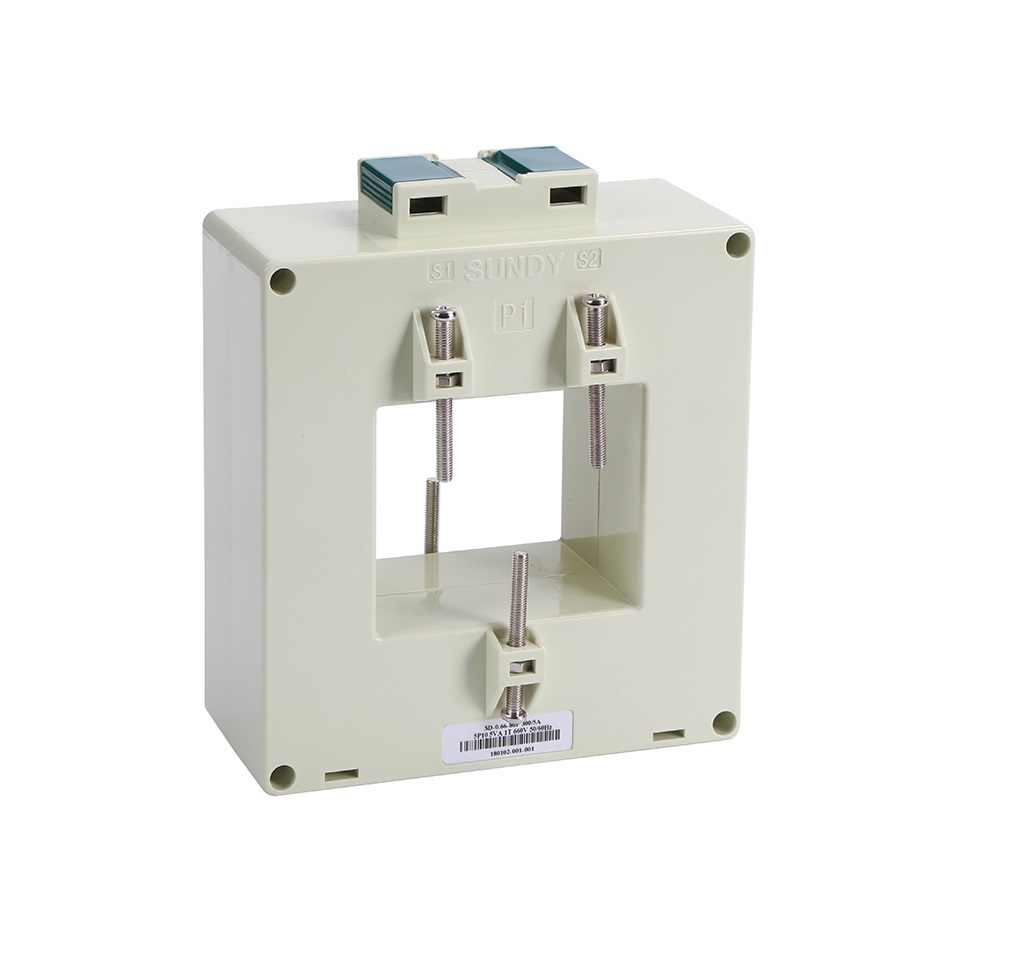

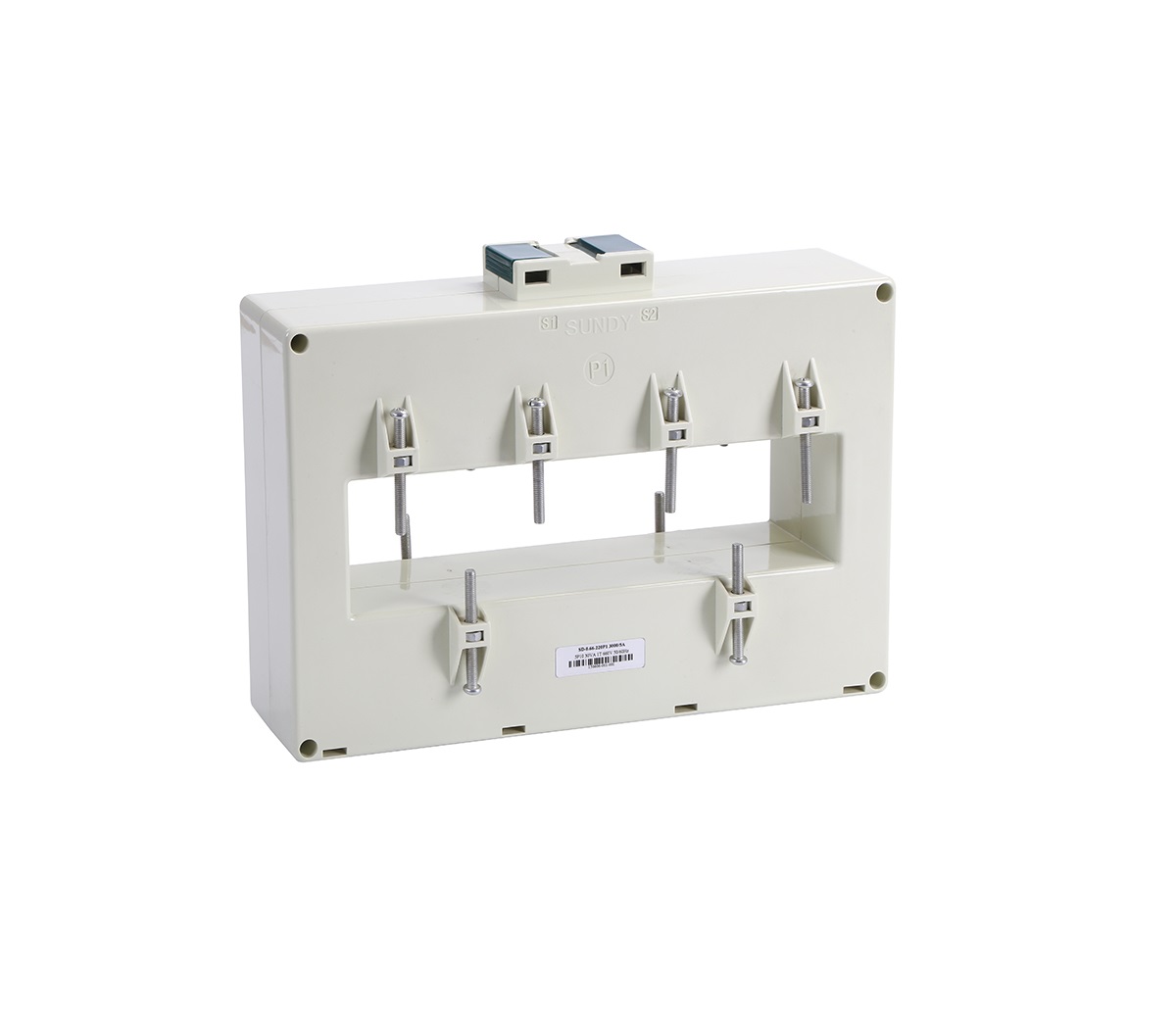

SD-0.66-P1 type current transformers
Characteristics：
SD-0.66-□□P1 is a kind of protective CT with rectangular window, adapted to bus bar entry as relay protection. It is designed for system short circuit protection. It has different accuracy groups and classes. Given the condition of same accuracy, it can reach to 15 times of current protection
Dwonload
