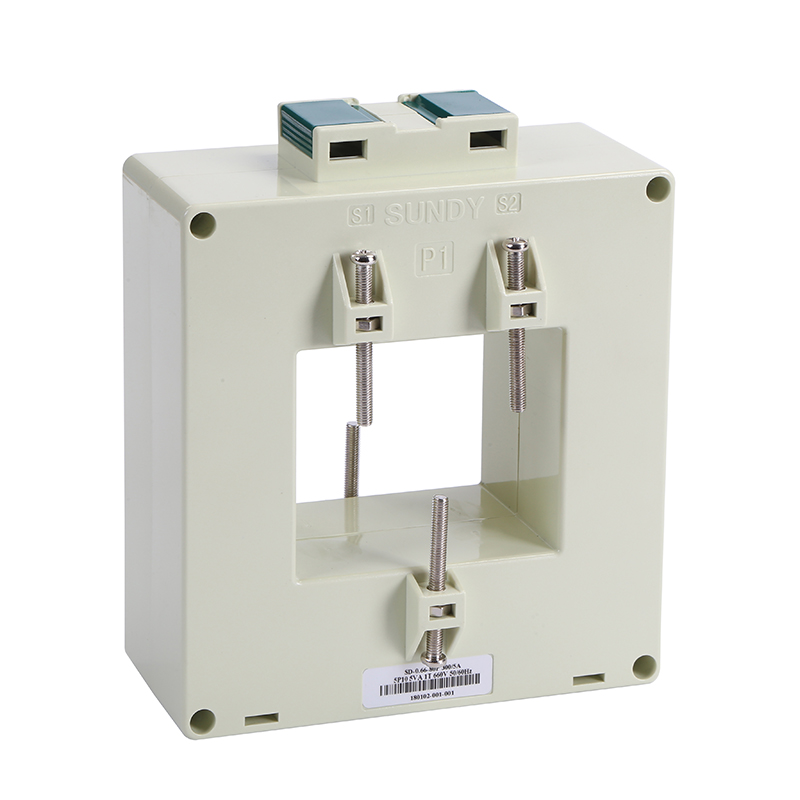

SD-0.66-J is designed for special application and with high accuracy, mainly adapted to current up to 1500A as power metering for wide current range.
It has wire connection type and core through type. It uses high magnetic conductive material and fabricated by special process, with features such as small size, high accuracy, big capacity.
